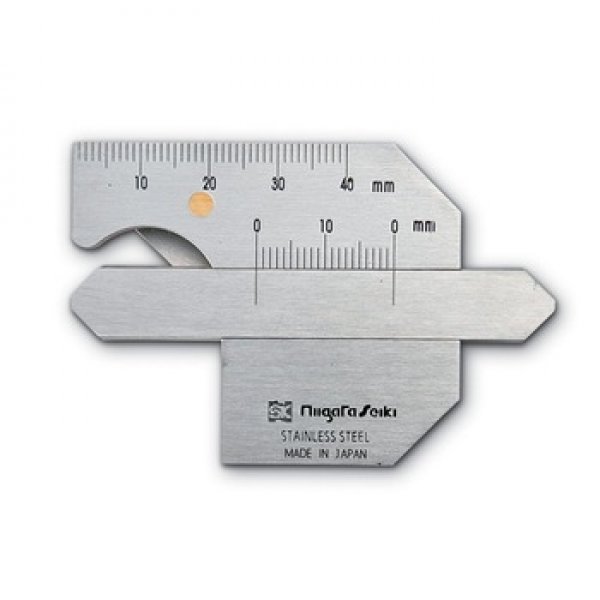

Dưỡng đo mối hàn model WG-1 / Nhật Bản

Trạng thái:

Còn hàng

Số lần xem:

3981

Đánh giá SP:

Long life use, rust and corrosion resistant. Made of stainless steel. This widely used welding gauge is essential for any high quality weling requirments. This welding gauge is extreamely durable as well as being light weight. (comes in a suspending case)

Chia sẻ:

Thông tin sản phẩm

WELDING GAUGES WG-1(M)

Features:

Long life use, rust and corrosion resistant. Made of stainless steel.
This widely used welding gauge is essential for any high quality weling requirments.
This welding gauge is extreamely durable as well as being light weight. (comes in a suspending case)

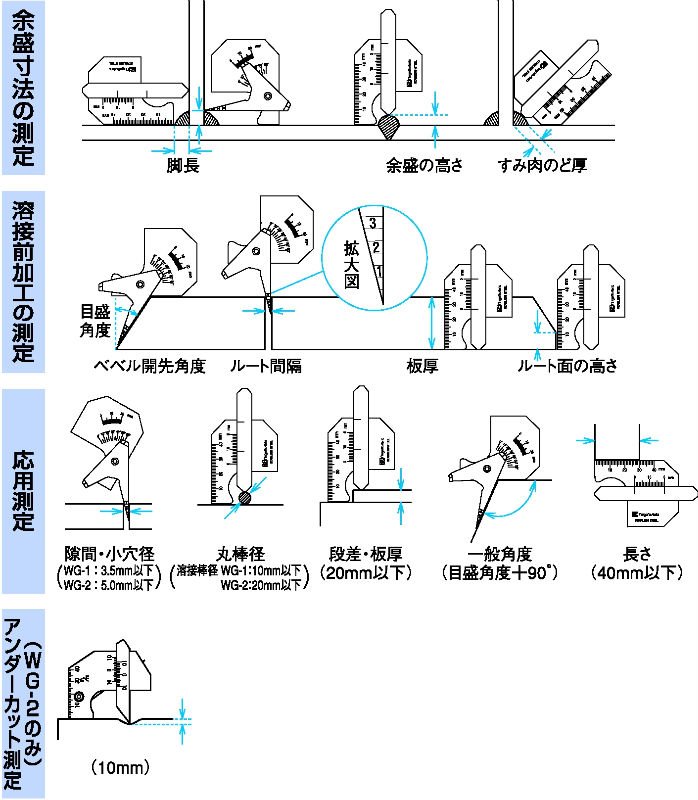

Capabilities:

Measuing bead weld

Filet weld (width, height)

Bead weld (height)

Filet weld (throat thickness)

Miscellaneous meausring

Beveling angle

Root opening

Thickness

Rood face

Practical measuring

Opening diameter(underr 3.5cm)

Welding bar diameter (under 20mm)

Step difference (under 20mm)

General angle

Length (less than 40mm)

Specification:

Model No.	WG-1	WG-2
Material/Thickness	SUS/4.3 mm
Accuracy	within ±0.4 mm	within ±0.2 mm
Scale	40 mm
Height of bead weld	10 mm
Height of filet weld	20 mm
Throat thickness of filet weld	10 mm
Undercut depth	10mm(WG-2 only)
Beveling angle	60°
Plate thickness/length	10 mm/40 mm
Root opening	3 mm	5 mm
Round bar thickness	10 mm
Root face	40 mm
