Thiết bị siêu âm khuyết tật đường hàn , mối hàn bằng TOFD

General Specification

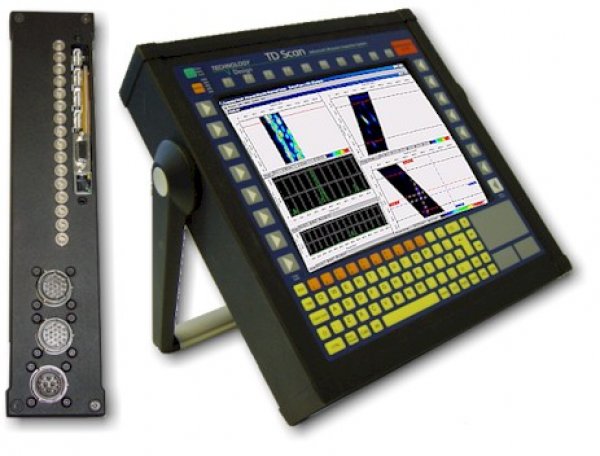

  The TD Scan belongs to the world's most advanced industrial ultrasonic imaging and analysis range of systems. Portability is the keyword and together with the ability to satisfy today?s most demanding ultrasonic inspection requirements, the TD Scan is the ToFD/Pulse Echo acquisition system of choice of many of our customers.
The TD Scan features an integrated QWERTY keyboard with mouse control, 10? monitor and shortcut keys for rapid execution of commands. Additional to the above the TD Scan can also be controlled from a remote PC via Ethernet or have peripheral devices like monitors, multimedia projectors, mice and external storage devices attached. An ideal, safe way of storing data is to use a flash memory key inserted into one of the 4 USB ports.

The TD Scan system provides an outstanding Single or Multi-channel, ToFD, Corrosion Mapping, Pulse Echo and Girth/Seam weld examination capability. With 16 conventional/ToFD hardware channels as standard the TD Scan will meet the requirements of almost any job.
The TD Scan features built-in motor drive with or without encoders and includes software to control a range of automated scanner types from single-axis scanners to X-Y scanners and ?arm?-scanners to rotational scanners and video-controlled positional tracking.
The system is supplied with a Windows XP based fully integrated easy-to-use software package for on-line and off-line analysis. The Software provides multiple configuration channels which provide the ability to present data from multiple probe sets, arrays or indeed a single probe enabling simple or complex setups to be achieved with the minimum of effort.
